    Super-High-Voltage Metallized Film Capacitors
    Phone: 0049 - 15736573893
    Inquiry Now
      • Super-High-Voltage Metallized Film Capacitors
      • Super-High-Voltage Metallized Film Capacitors
      • Super-High-Voltage Metallized Film Capacitors
      • Super-High-Voltage Metallized Film Capacitors
      • Super-High-Voltage Metallized Film Capacitors
    Product Detail

    LOOK AT PDF：Super-High-Voltage Metallized Film Capacitors

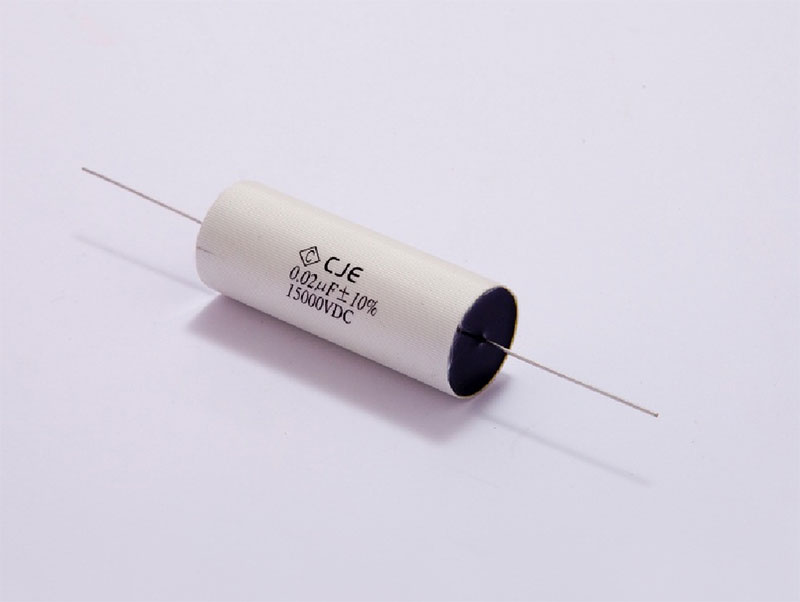

    Super-High-Voltage Metallized Film Capacitors

    ●Applications

    • Super-High-Voltage power supply of high top medical treatment equipment.

    • High voltage converter.

    • High voltage coupling and carrier wave communication signal coupling in high voltage transmission line.

    • Protection facilities of large-scale machine and safety measurement apparatus.

    ● Description of Products

    • Reference standard: GB/T 2693 idt IEC 60384-1.

    • Metallized polypropylene/polyester film wound, non-inductive construction.

    • The polyester tape or specific tape wrap and epoxy resin end filled.

    • Excellent self-hearing property and temperature stability.

    • Dry construction assuring safety use.

    • Terminals including tinned copper wire, copper solder tags, copper screw, copper nut and others are available on request.


    ●  Technology Features

    • To adopt special tape to prevent insulation materials filled in high voltage devices from appearing crack, to avoid producing creepage appearance along with the crack.

    • Design of product can assure that there are not ion current inside capacitor under AC and high voltage pulse application.

    • More miniature size product available on request.

    ● Specifications

    Temperature Range

    -40 ～    +85℃     ( Relating to operating current )


    160pF～20μF  ( Others made to order    available )

    Capacitance Tolerance ΔC/C

    J：±5%   K：±10%

    Rated Voltage Un

    3k～30kVdc/1k～10kVac ( Others    made to order available )

    Voltage Proof Between Terminals UTT

    1.4Un ( 60s )

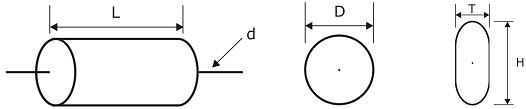

    ●  Dimensions

    ●  Representative Specifications ( Tubular shape )

    u  Miniature HVB series


    Un

    Part    Number

    CR

    D

    L

    d

    dv/dt

    Ipp

    (µF)

    (mm)

    (mm)

    (mm)

    V/μs

    (A)

    10kV

    HVB    10kV 105

    1.0

    68

    90

    1.2

    900

    900

    15kV

    HVB    15kV 103

    0.01

    13

    71

    1.0

    2000

    20

    HVB    15kV 503

    0.05

    26

    71

    1.0

    2000

    100

    HVB    15kV 104

    0.1

    36

    71

    1.0

    2000

    200

    HVB    15kV 105

    1.0

    88

    146

    /

    1550

    1550

    HVB    15kV 205

    2.0

    123

    146

    /

    1550

    3100

    20kV

    HVB    20kV 103

    0.01

    16

    100

    0.8

    3200

    32

    HVB    20kV 203

    0.02

    22

    100

    1.0

    3200

    64

    HVB    20kV 503

    0.05

    32

    100

    1.2

    3200

    160

    HVB    20kV 104

    0.1

    43

    100

    1.2

    3200

    320

    HVB    20kV 105

    1.0

    96

    168

    /

    1800

    1800



    ● Representative Specifications ( Tubular shape )

    Un

    Part    Number

    CR

    D

    L

    d

    dv/dt

    Ipp

    (µF)

    (mm)

    (mm)

    (mm)

    V/μs

    (A)

    4kVdc

    HVE    4kV 103

    0.01

    12

    30

    0.8

    2500

    25

    HVE    4kV 104

    0.10

    20

    47

    0.8

    1000

    100

    HVE    4kV 224

    0.22

    28

    47

    0.8

    1000

    220

    6kVdc

    HVE    6kV 103

    0.01

    14

    39

    0.8

    4000

    400

    HVE    6kV 473

    0.047

    17

    60

    0.8

    1600

    75.2

    HVE    6kV 104

    0.1

    24

    66

    0.8

    1500

    150

    8kVdc

    HVE 8kV 222

    0.0022

    9

    48

    0.8

    4000

    8.8

    HVE 8kV 103

    0.01

    16

    48

    0.8

    5000

    50

    HVE 8kV 683

    0.068

    26

    80

    0.8

    3200

    217.6

    10kVdc

    HVE    10kV 102

    0.001

    10

    56

    0.8

    12600

    12.6

    HVE    10kV 103

    0.01

    16

    60

    0.8

    5600

    56

    HVE    10kV 473

    0.047

    26

    90

    0.8

    3000

    141

    12kVdc

    HVE    12kV 102

    0.001

    10

    56

    0.6

    7200

    7.2

    HVE    12kV 223

    0.022

    25

    71

    0.8

    3300

    72.6

    15kVdc

    HVE    15kV 471

    0.00047

    10

    56

    0.8

    20000

    9.4

    HVE    15kV 102

    0.001

    11

    64

    0.8

    15000

    15

    HVE    15kV 103

    0.01

    26

    71

    1

    8000

    80


    Un

    Part Number

    CR

    D

    L

    d

    dv/dt

    Ipp

    (µF)

    (mm)

    (mm)

    (mm)

    V/μs

    (A)

    4kVdc

    HVB 4kV 105

    1.0

    45

    90

    1.2

    600

    600

    HVB 4kV 106

    10

    95

    168

    /

    250

    2500

    HVB 4kV 206

    20

    135

    168

    /

    250

    5000

    6kVdc

    HVB 6kV 103

    0.01

    14

    41

    0.8

    5500

    55

    HVB 6kV 474

    0.47

    42

    85

    1.2

    1200

    564

    HVB 6kV 105

    1.0
