    High-Voltage Metallized Polypropylene Film/Foil Capacitors
    Phone: 0049 - 15736573893
    Inquiry Now
      • High-Voltage Metallized Polypropylene Film/Foil Capacitors
      • High-Voltage Metallized Polypropylene Film/Foil Capacitors
    Product Detail

    It is suitable for high voltage and high pulse lines in other electronic devices such as switching power, electronic rectifier and other electronic devices such as switching power, electronic rectifier and so on. The high frequency loss is very small, the insulation resistance is high, and it can withstand high voltage and high pulse current.

    Look at PDF：High-Voltage Metallized Polypropylene Film/Foil Capacitors


     High-Voltage Metallized Polypropylene Film/Foil Capacitors


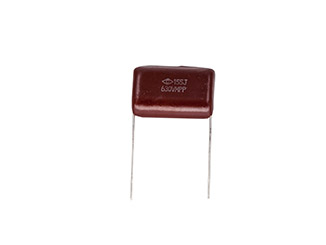

    ●Description of Products

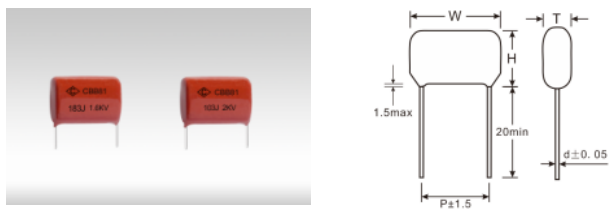

    • Metallized film in internal series with AL foil and non-inductive construction

    • Flame-retardant epoxy resin coating, redial leads.

    • Very small dissipation factor at high-frequency, high insulation resistance, withstanding high voltage and high pulse current, having excellent self-healing performance.

    • Suitable for TV and monitor as line scanning back stroke capacitors, also suitable for high-voltage and high pulse circuits of switching power, electronic.


    ●Specifications

     Reference Standard

    GB/T 14579

     Climatic Category

    40/105/21

     Operating Temperature

    -40℃～+105℃

    （85～+105℃：decreasing factor 1.25% per ℃ for UR）

     Rated Voltage

    630V、800V、1000V、1250V、1600V、2000V、2500V( DC )

     Capacitance Range

    0.00033～0.1μF

     Capacitance Tolerance

    J ( ±5% )，K ( ±10% )

     Voltage Proof

    1.8UR ( 5s )

     Dissipation Factor

    ≤0.0010   ( 20℃，10kHz )

     Insulation Resistance

    R≥30000MΩ   ( 20℃，100V，1min )


    Max Pulse Rise Time(dV/dt)

    UR(V)

    dV/dt(V/μs)

    P=15

    P=22.5

    630/800

    10000

    5000

    1000/1250

    25000

    10000

    1600

    32000

    11000

    2000

    35000

    15000

    2500

    40000

    —



    ● Part number system


    The 16 digits part number is formed as follow：

    1

    2

    3

    4

    5

    6

    7

    8

    9

    10

    11

    12

    13

    14

    15

    16

    C

    8

    1


















    Digit 1 to 3                                          Series code

                                                               C81=CBB81

    Digit 4 to 6                                          Rated voltage

                                                               163=101×63 V=630 V

                                                               216=102×16 V=1600 V

    Digit 7                                                 AC/DC

                                                               A=AC   D=DC

    Digit 8 to 10                                        Rated capacitance value

                                                               310=103×10 pF=0.01μF

    Digit 11                                               Capacitance tolerance

                                                               H=±3%，±5%，K=±10%

    Digit 12 to 16                                      Internal use



    ●Dimensions

    630/800V


    1000/1250V

    CR
    (μF)

    W
    max

    H
    max

    T
    max

    P

    d

    Part Number


    CR
    (μF)

    W
    max

    H
    max

    T
    max

    P

    d

    Part Number

    0.01

    19

    11.7
