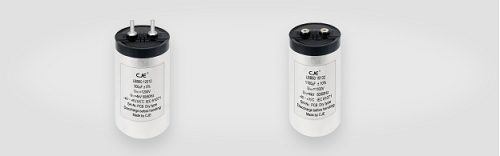

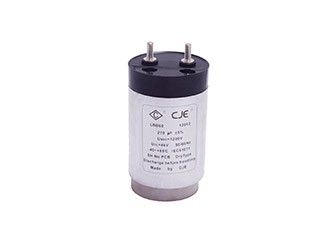

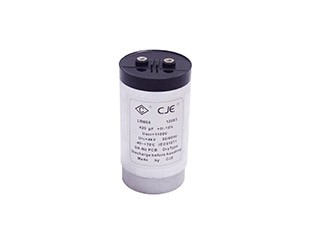

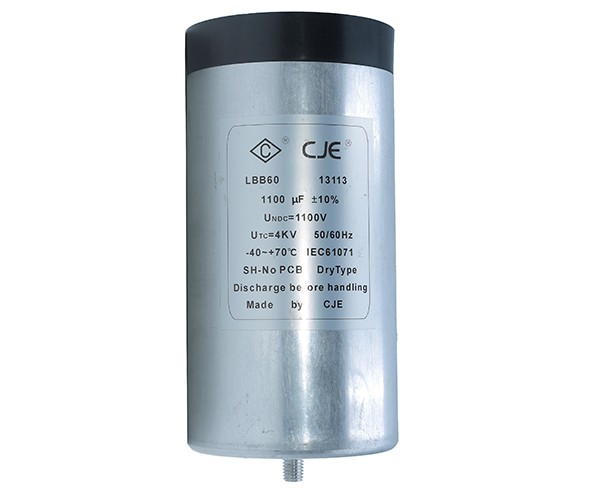

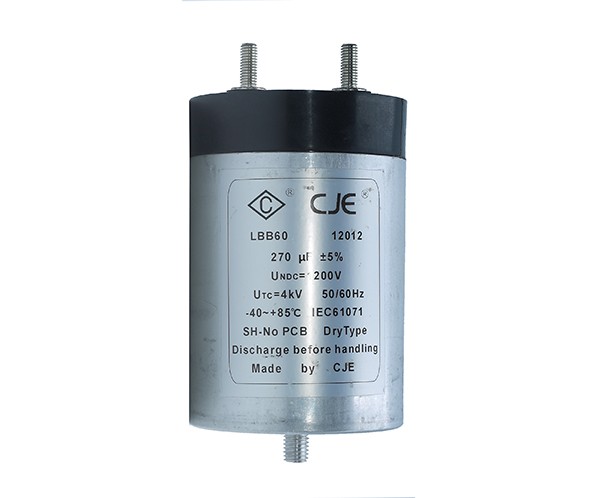

DC-link Film Capacitors (Aluminum Case)

Look at PDF：C60_LBB60金属化膜直流滤波电容器(铝壳）.pdf

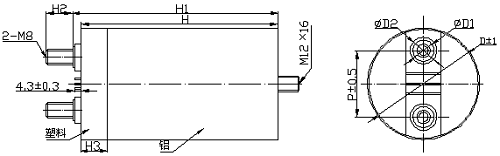

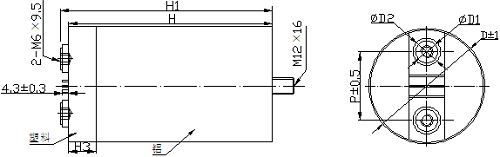

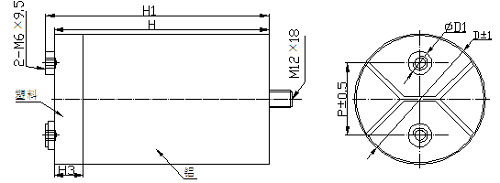

●Outline Drawing

D≤116mm

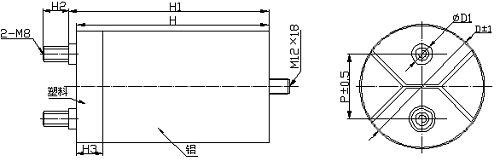

D=136mm

Additional description of dimensions

Applications

DC-link smooth filtering of solar / wind energy inverter.

Smooth filtering of dc voltage of inverter power supply, UPS power supply and high power switching power supply.

Smooth filtering of High power inverter, inverter welding machine and other power electronic equipment .

Description of Products

Reference standard: GB/T 17702  idt IEC 61071，

GB/T 2693 idt IEC 60384-1；

Special metallized polypropylene film wound, non-inductive construction.

The element of capacitor is sealed with high performance flame-retardant epoxy resin in aluminum case.

To adopt technology patent with self-owned intellectual property right approved by our country.

Very low ESR, withstanding very high effective value of current Irms and peak to peak value of current Ipp.

Withstanding higher non-periodic peak to peak voltage Us.

To replace electrolytic capacitor in smoothly filtering circuit so as to offer reliable assurance for long life operating of electric control system.

●Specifications

The effect of altitude on convection cooling and external insulation should be taken into consideration,if the altitude exceeds 2000m.

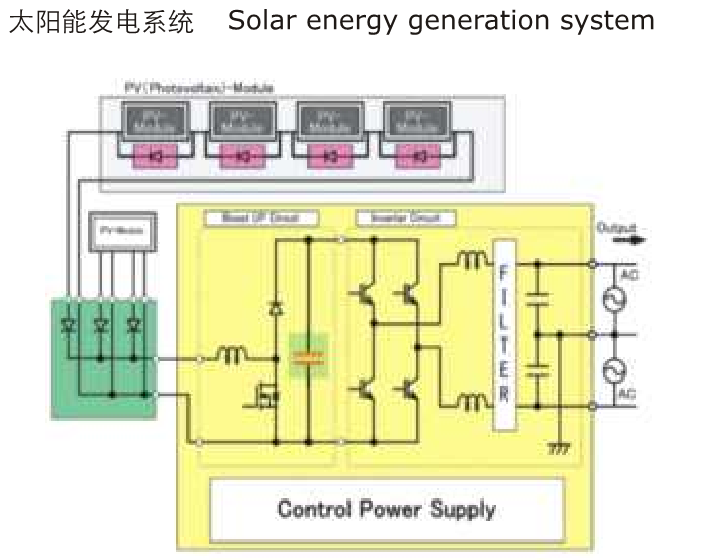

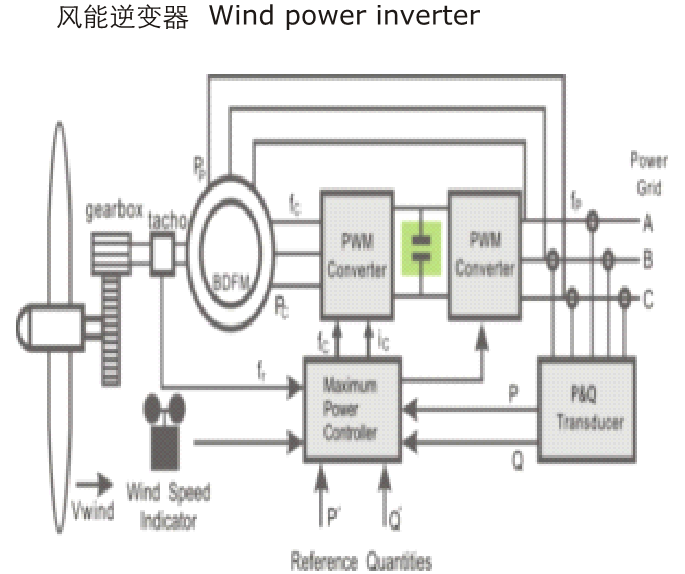

●Typical Circuits Applications

Part number system

● The 16 digits part number is formed as follow：

  Digit 1 to 3                           Series code

                                              C60=LBB60（Aluminum Case）

  Digit 4 to 6                            Rated voltage

                                              163=101×63V=630V

                                               216=102×16V=1600V

  Digit 7                                   AC/DC

                                               A=AC   D=DC

  Digit 8 to 10                         Rated capacitance value

                                              310=103×10pF=0.01μF

  Digit 11                                Capacitance tolerance

                                              J=±5%， K=±10%，M=±20%

  Digit 12                                Terminal form

                                              Male terminals = M

                                              Thread hole type =T

  Digit 13 to15                        Specifications of terminal

                                               M6 P32=632

                                               M8 P50=850

    Digit  16                               Internal use

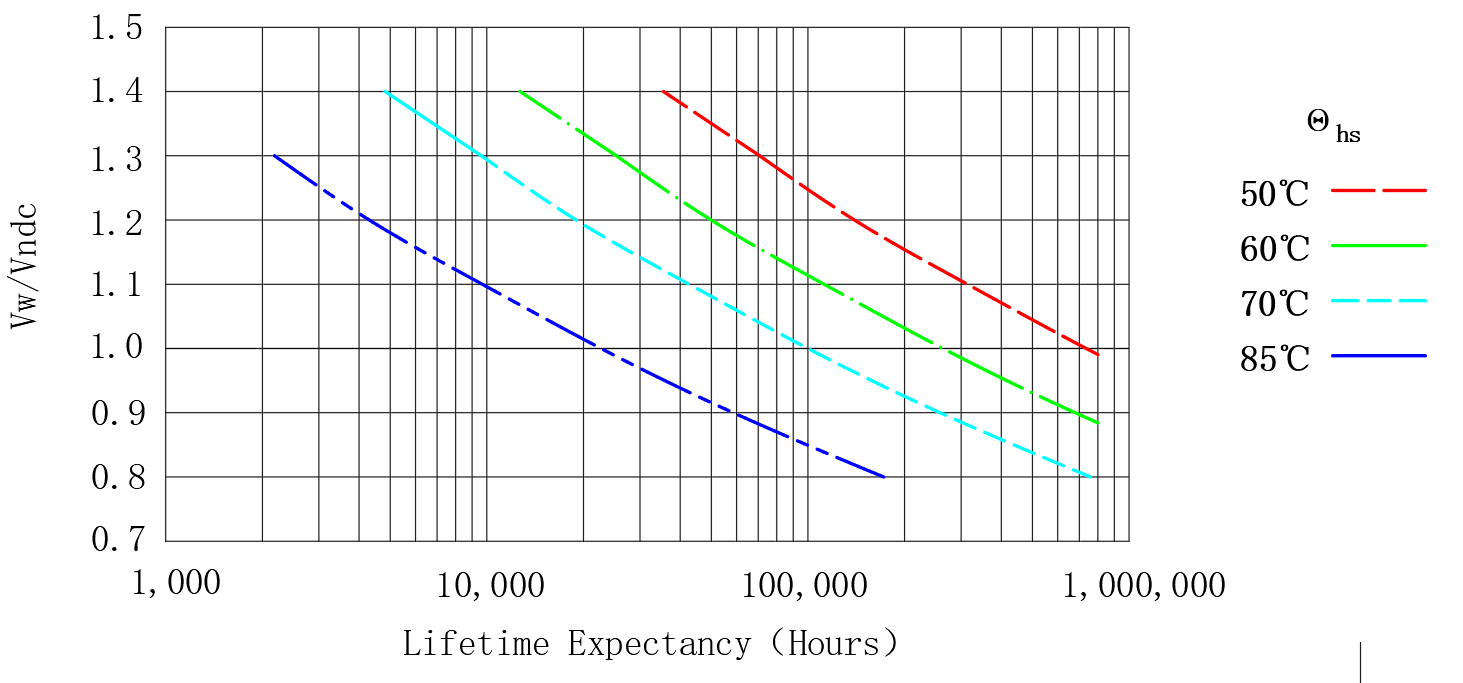

● Expected lifetime curve

● Technical data （mm)

UN (Vdc)

CN (μF)

ESR 1kHz (mΩ)

Ls (nH)
