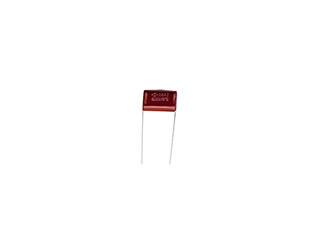

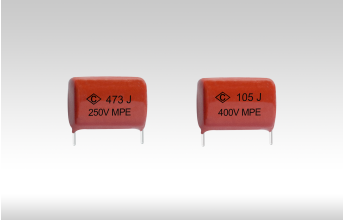

    CL21Metallized Polyester Film Capacitors
    Phone: 0049 - 15736573893
    Inquiry Now
      • CL21Metallized Polyester Film Capacitors
      • CL21Metallized Polyester Film Capacitors
    Product Detail

    It is suitable for DC and low pulse circuits, and is widely used in filtering, isolating, bypass, coupling and noise reduction of various electrical and electrical equipment. Small size, high temperature resistance, flame retardant epoxy resin encapsulation.

    LOOK AT PDF：C21_CL21金属化聚酯膜电容器_2021.pdf


    Metallized Polyester Film Capacitors


    ● Description of Products

    Metallized polyester film wound, non-inductive construction.

    Flame-retardant epoxy resin coating, radial CP wire.

    Small size, withstanding high temperature, excellent self-healing property.

    Suitable for DC and low pulse circuits, ideal for use in filtering, blocking, by-pass, signal coupling, noise suppression circuits for various electronic equipment.


    ●Specifications

    Reference Standard

    SJ/T 10874

    Climatic Category

    55/105/21

    Operating Temperature

    -40℃～+105℃（85～+105℃：decreasing factor 1.25% per ℃ for UR）

     Rated Voltage

    50/63V、100V、250V、400V、630V( DC )

    Capacitance Range

    0.01～10μF

    Capacitance Tolerance

    J ：±5% ，K ：±10%

    Voltage Proof

    1.6UR ( 5s )

    Dissipation Factor

    ≤0.01   ( 20℃，1kHz )

    Insulation Resistance

    UR≤100V

    R≥5000MΩ

    CR≤0.33μF

    ( 20℃，10V，1min )

    RCR≥2500MΩ·μF

    CR>0.33μF

    UR>100V

    R≥10000MΩ

    CR≤0.33μF

    ( 20℃，100V，1min )

    RCR≥5000MΩ·μF

    CR>0.33μF

    Max Pulse Rise Time(dV/dt)

    UR(V)

    dV/dt(V/μs)

    P=5

    P=7.5

    P=10

    P=15

    P=22.5

    P=27.5

    50/63

    —

    20

    15

    10

    5

    —

    100

    110

    60

    40

    30

    15

    —

    250

    —

    120

    80

    50

    30

    20

    400

    —

    180

    130

    75

    45

    25

    630

    —

    280

    180

    50

    40

    30


    Part number system

    ●The 16 digits part number is formed as follow：

    1

    2

    3

    4

    5

    6

    7

    8

    9

    10

    11

    12

    13

    14

    15

    16

    C

    2

    1














             Digit 1 to 3                                Series code

                                                              C21=CL21



             Digit 4 to 6                                Rated voltage

                                                              163=101×63 V=630 V

                                                               216=102×16 V=1600 V



              Digit 7                                       AC/DC

                                                               A=AC   D=DC



              Digit 8 to 10                             Rated capacitance value

                                                              310=103×10 pF=0.01μF



               Digit 11                                    Capacitance tolerance

                                                               J=±5%，K=±10%，M=±20%



               Digit 12 to 16                           Internal use

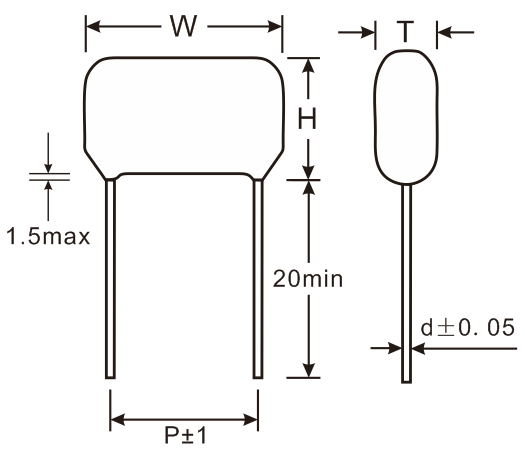

    ●Dimensions

    50/63VDC#


    100VDC

    CR
    (μF)

    W
    max

    H
    max

    T
    max

    P

    d

    Part Number


    CR
    (μF)

    W
    max
