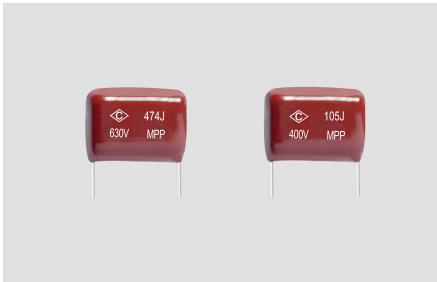

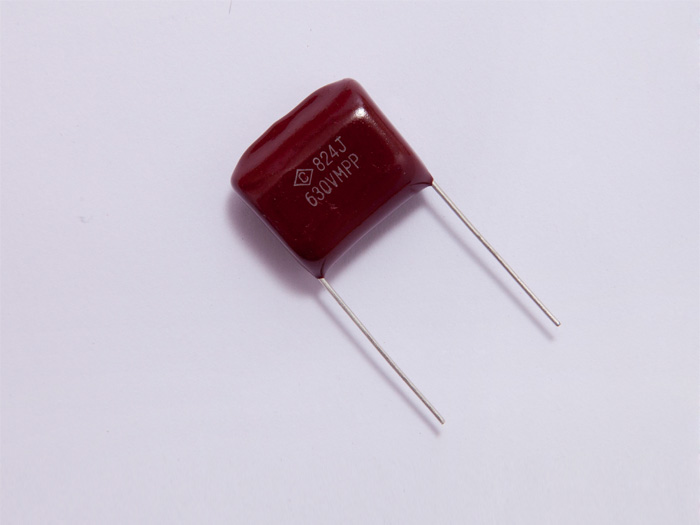

    CBB21 Metallized Polypropylene Film Capacitors
    Phone: 0049 - 15736573893
    Inquiry Now
      • CBB21 Metallized Polypropylene Film Capacitors
      • CBB21 Metallized Polypropylene Film Capacitors
    Product Detail


    LOOK AT PDF：C22_CBB21金属化聚丙烯膜电容器_2021.pdf


    Metallized Polypropylene Film Capacitors



    ● Description of Products

    Metallized polypropylene film wound, non-inductive construction.

    Flame-retardant epoxy resin coating, radial CP wire.

    Small dissipation factor at high-frequency, low temperature rise, good stability of capacitance, good insulation resistance property, excellent self-healing property.

    Suitable for AC/DC, pulse circuit, widely used in display, sound equipment, audio-visual device, telecommunication equipment, date transmission and process facility and various electronic equipment.


    Specifications

    Reference Standard

    GB/T 10190

    Climatic Category

    40/105/21

    Operating Temperature

    -40℃～+105℃（85～+105℃：decreasing factor 1.25% per ℃ for UR）

    Rated Voltage

    160V、250V、400V、630V、1000V、1250V、1600V、2000V( DC )

    Capacitance Range

    0.001～6.8μF

    Capacitance Tolerance

    J ：±5%    K ：±10%

    Voltage Proof

    1.6UR ( 5s )

    Dissipation Factor

    ≤0.0010   ( 20℃，1kHz )

    Insulation Resistance

    R≥30000MΩ，CR≤0.33μF

    ( 20℃，100V，1min )

    RCR≥10000MΩ·μF，CR>0.33μF

    Max Pulse Rise Time(dV/dt)

    UR(V)

    dV/dt(V/μs)

    P=7.5

    P=10

    P=15

    P=22.5

    P=27.5

    160/250

    500

    450

    250

    100

    45

    400

    700

    600

    450

    250

    80

    630

    1200

    950

    700

    300

    130

    1000/1250

    2000

    1700

    1300

    900

    260

    1600

    —

    —

    900

    450

    350

    2000

    —

    —

    1200

    600

    —


    Part number system

    ●The 16 digits part number is formed as follow：

    1

    2

    3

    4

    5

    6

    7

    8

    9

    10

    11

    12

    13

    14

    15

    16

    C

    2

    2














           Digit 1 to 3                                 Series code

                                                             C22=CBB21



           Digit 4 to 6                                  Rated voltage

                                                              163=101×63 V=630 V

                                                               216=102×16 V=1600 V



            Digit 7                                          AC/DC

                                                                A=AC   D=DC



            Digit 8 to 10                                 Rated capacitance value

                                                                310=103×10 pF=0.01μF



             Digit 11                                       Capacitance tolerance

                                                                J=±5%，K=±10%，M=±20%



              Digit 12 to 16                             Internal use

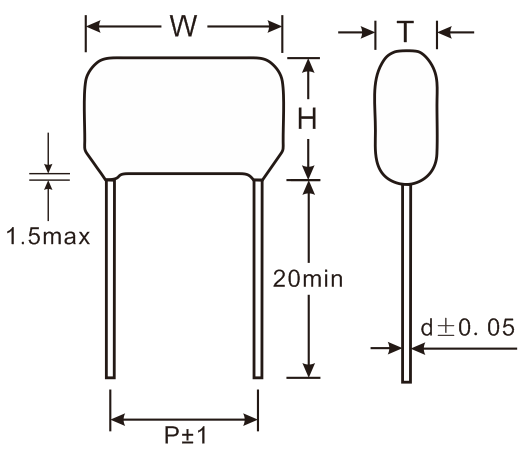

    ●Dimensions

    160/250VDC#


    400VDC

    CR
    (μF)

    W
    max

    H
    max

    T
    max

    P

    d

    Part Number


    CR
    (μF)

    W
    max

    H
    max

    T
    max

    P

    d

    Part Number

    0.01

    10.5

    7.9

    4.3

    7.5

    0.6
